DeSite SLG 56
GENERAL DESCRIPTION
The DeSite SLG 56 is the only screener specifically designed for mini equipment, making it an ideal solution for small-scale screening projects and operations. With an hourly production rate of 10 yards, it is the most affordable screener in our lineup, perfect for those who need efficient screening without the high cost.
Feed the DeSite SLG 56 with :
Mini Excavators
Standard Skidsteer
Sub Compact Tractors
Mini Skidsteers
You Can Screen
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand

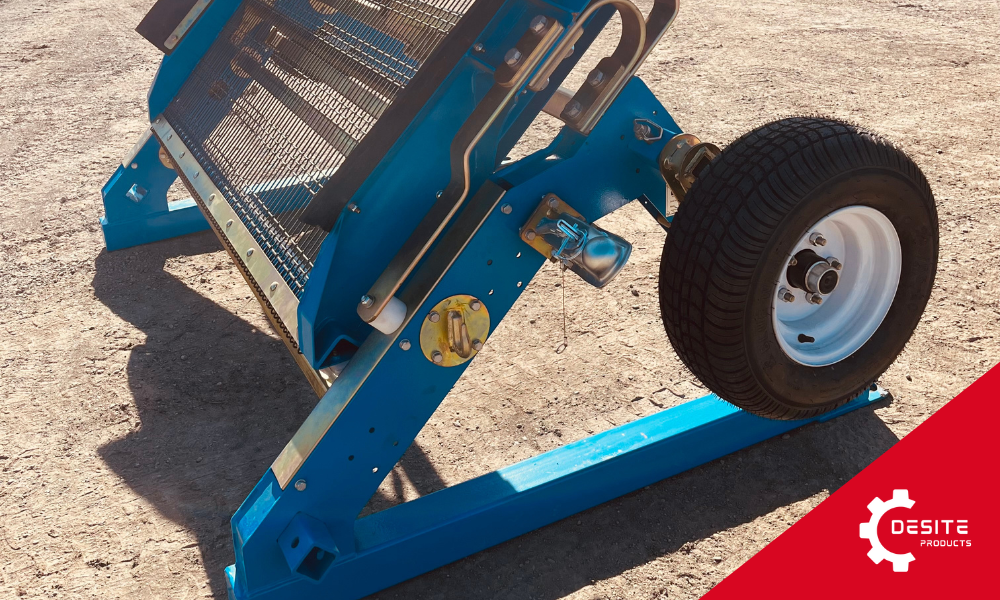

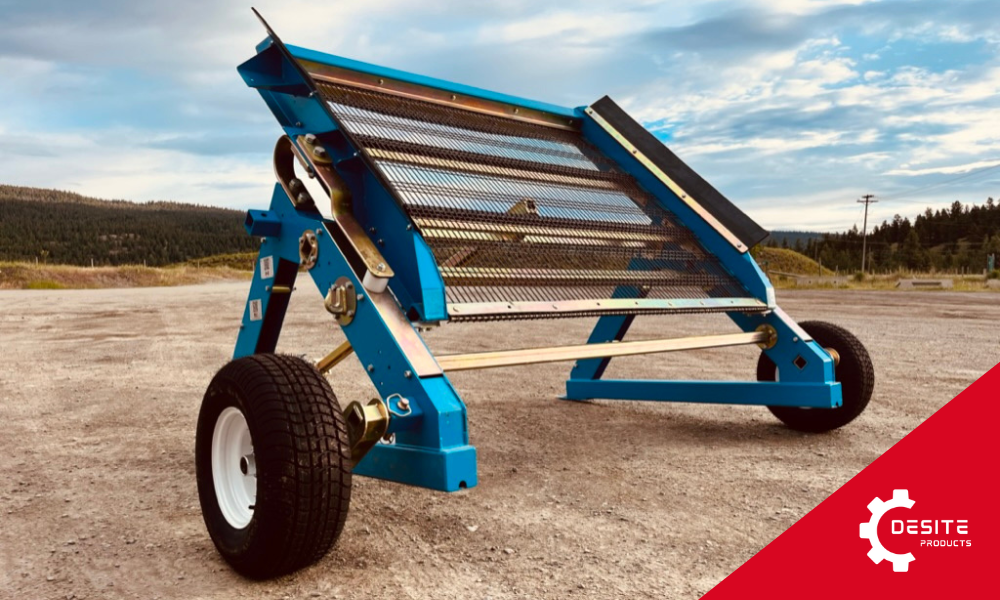

Screener Gallery
Screener Features

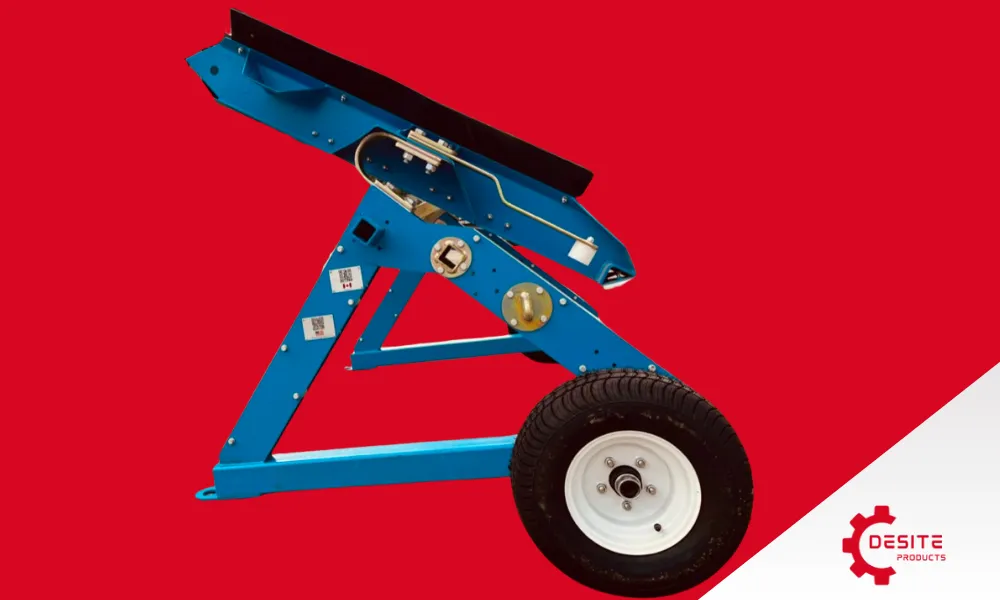

C SPRING SUSPENSION SYSTEM
The C Spring Suspension System, just like in our other models, is crucial for enabling the action and reaction of the screen deck during the screening process. In the DeSite SLG 56, this system is especially important because it is a static screener, meaning it does not have a vibratory pack. The C Spring Suspension System ensures that the material moves smoothly across the screen deck, maintaining efficiency and effectiveness in the screening process.

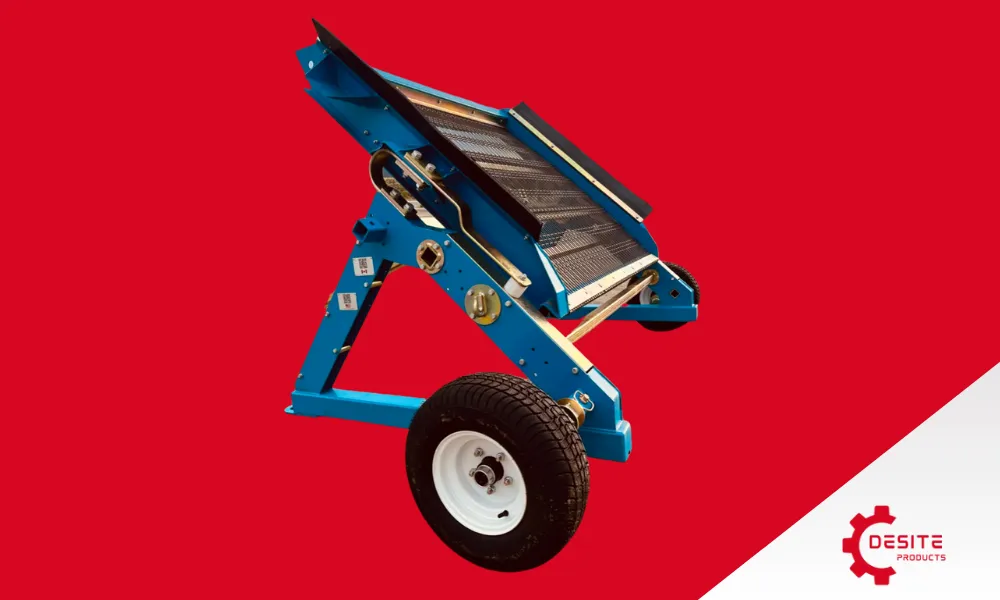

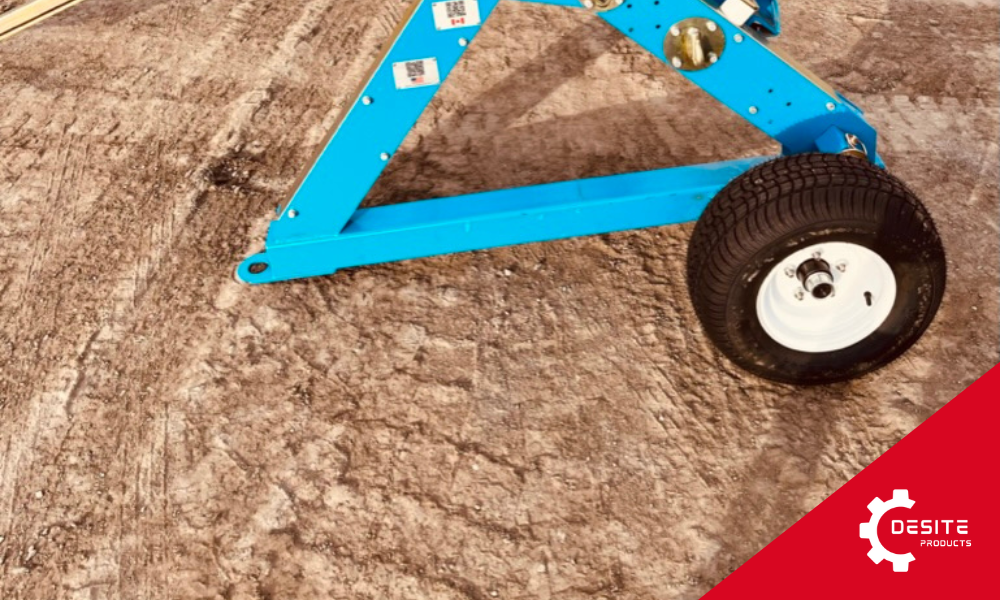

REMOVABLE WHEELS SYSTEM
Unlike our larger models that come with bucket transport lugs, the DeSite SLG 56 is designed with a lightweight and compact build, allowing for easy mobility. To accommodate this, we've equipped the machine with removable wheels. Depending on the state of the machine, such as during the screening process, these wheels can be quickly removed and stored to prevent any damage when using your equipment. This user-friendly system allows you to remove or attach the wheels in less than 5 minutes, ensuring seamless transitions between transport and operation.

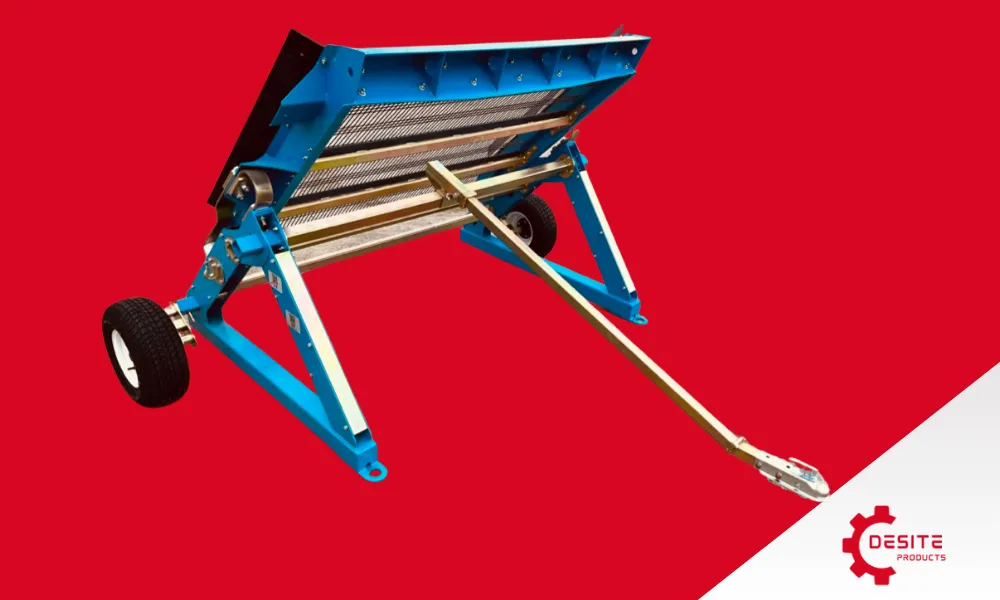

QUICK DISCONNECT HITCH SYSTEM
The Quick Disconnect Hitch System allows for easy mobility of our DeSite SLG 56. You can quickly detach the hitch and store it during the screening process, or reattach it when you need to move the machine. This system is designed for simplicity and efficiency, enabling the user to complete the process in less than 5 minutes, ensuring smooth transitions between screening and transport. The DeSite SLG 56 can be powered by standard 120-volt electricity, provided the distance from the power source is under 75ft and a heavy-duty 10-gauge electrical cord is used, ensuring flexibility and convenience in various operational settings.

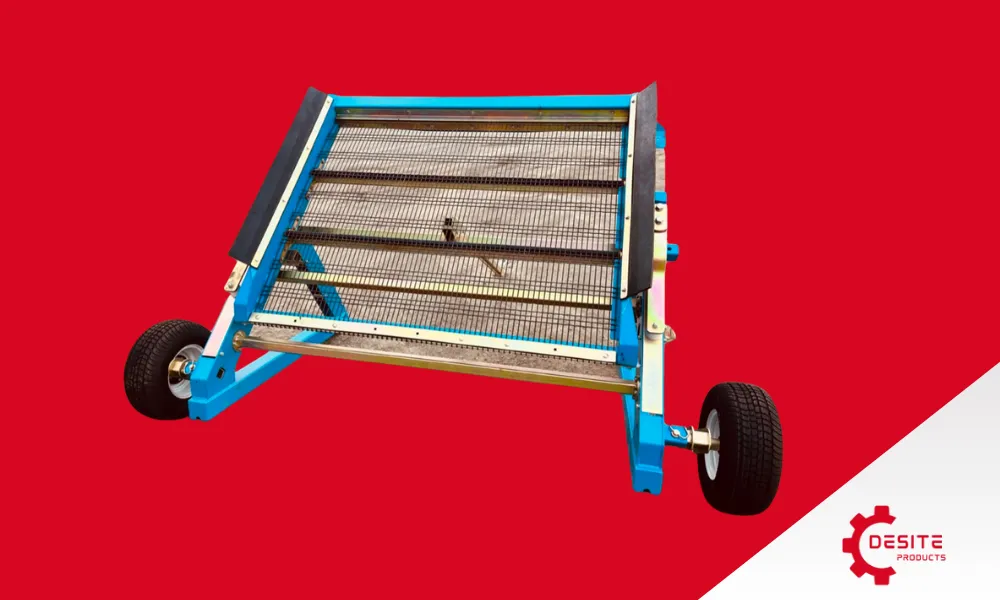

RUBBER SCREEN DECK SKIRTS
DeSite SLG 56 features robust rubber skirts along each side of the screen deck, designed to serve as a protective barrier. These skirts effectively catch any loose material that may escape from the bucket, preventing debris from spilling over and maintaining a cleaner, more organized work environment.
Machine Specifications
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 1879mm |
| Machine Height | 1559mm |
| SCREEN DECK | |
| Screen Deck Width | 1600mm |
| Screen Deck Length | 1676mm |
| Screen Deck Surface area | 3.06 square meters |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| WEIGHT | |
| Total Weight | 449KG |

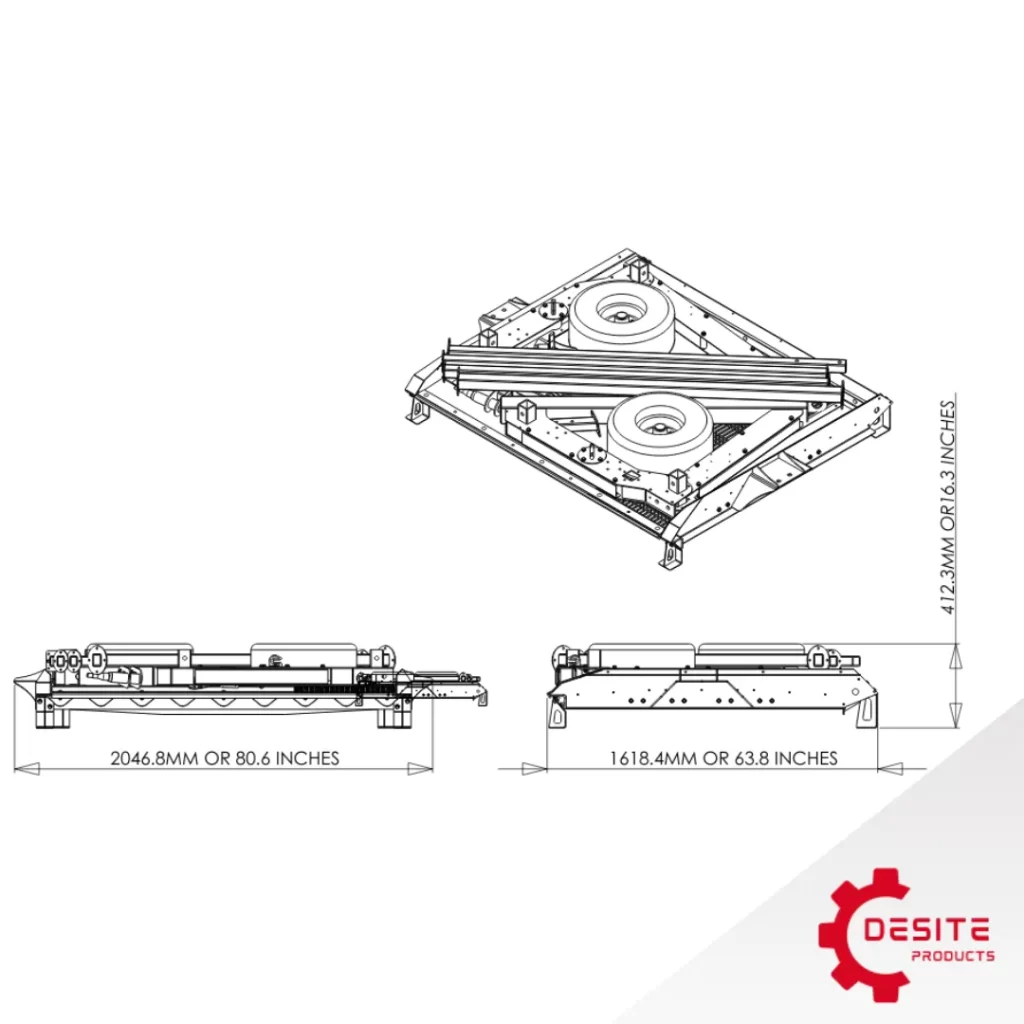

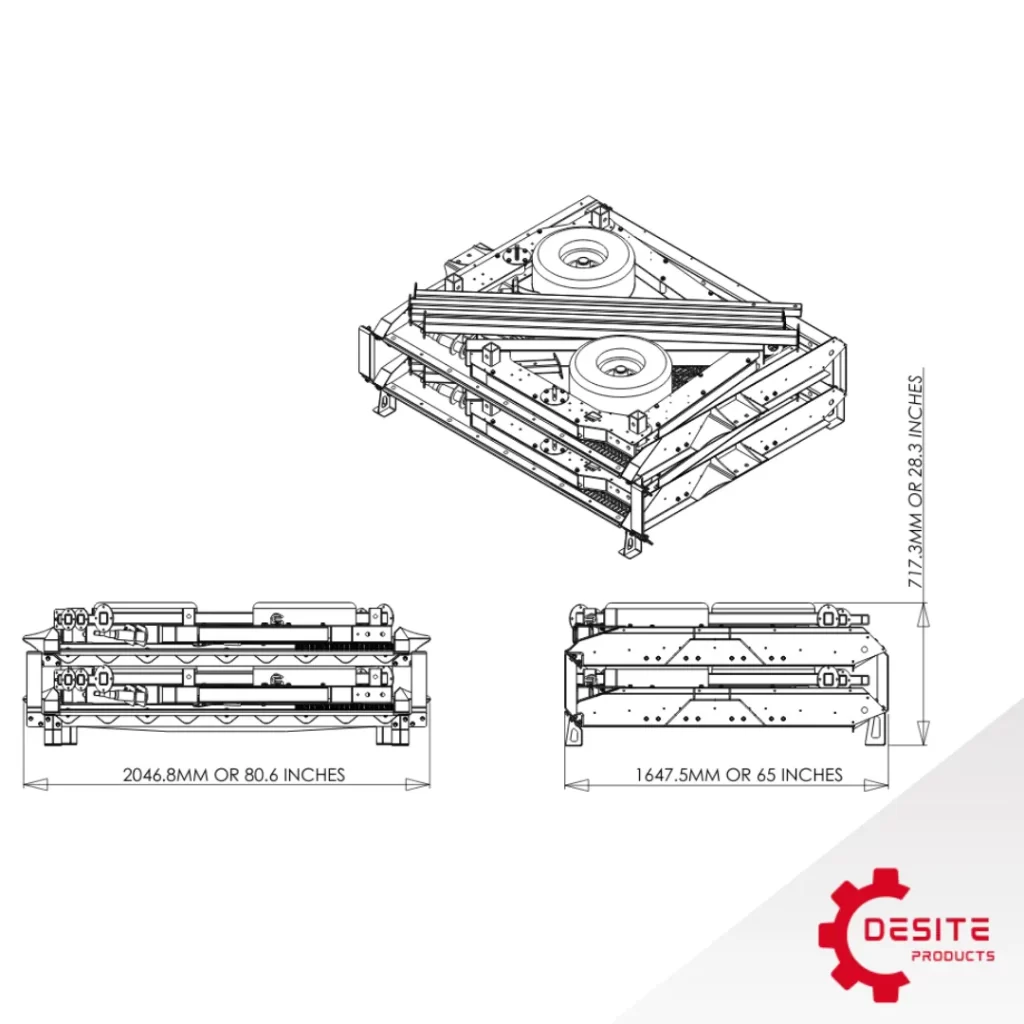

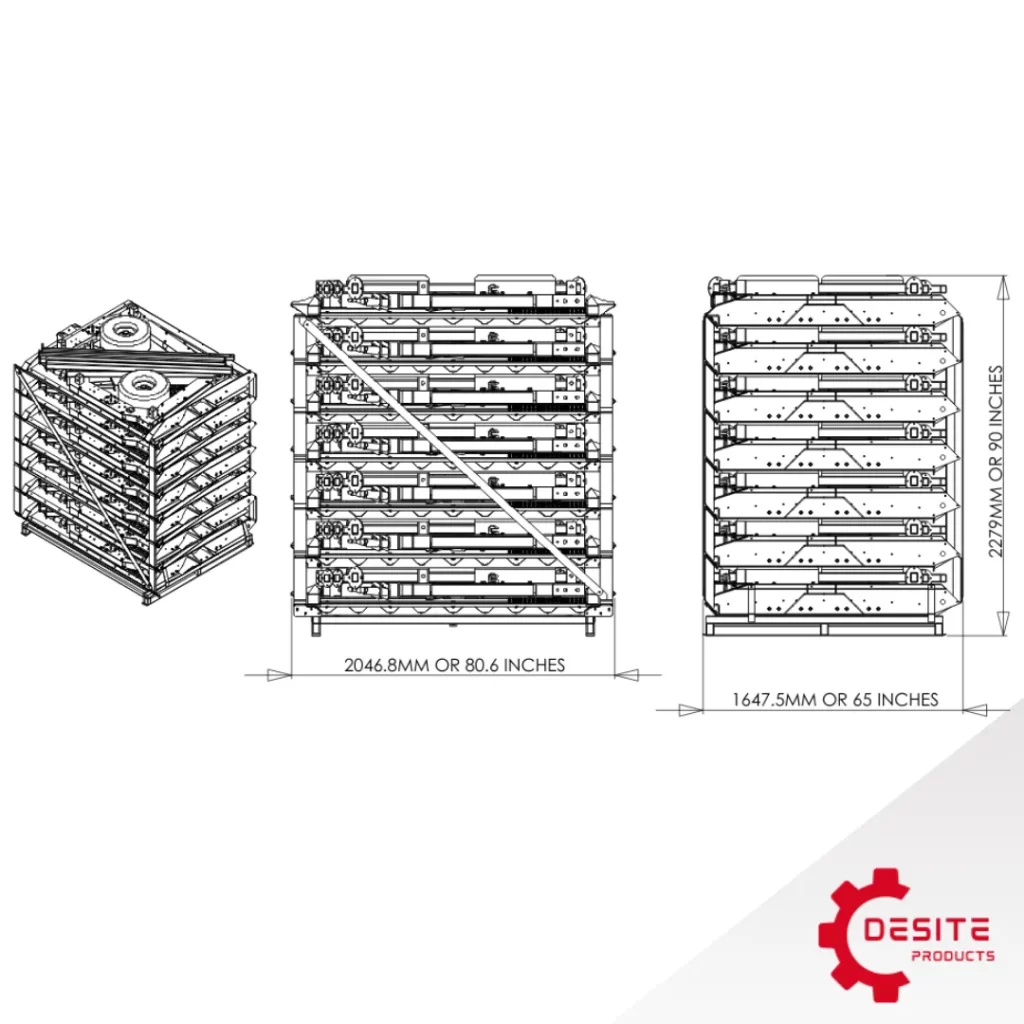

Shipping Efficiency
DeSite Engineers And Designs Our Products With Shipping Efficiency
1.5 Hrs for Assembly

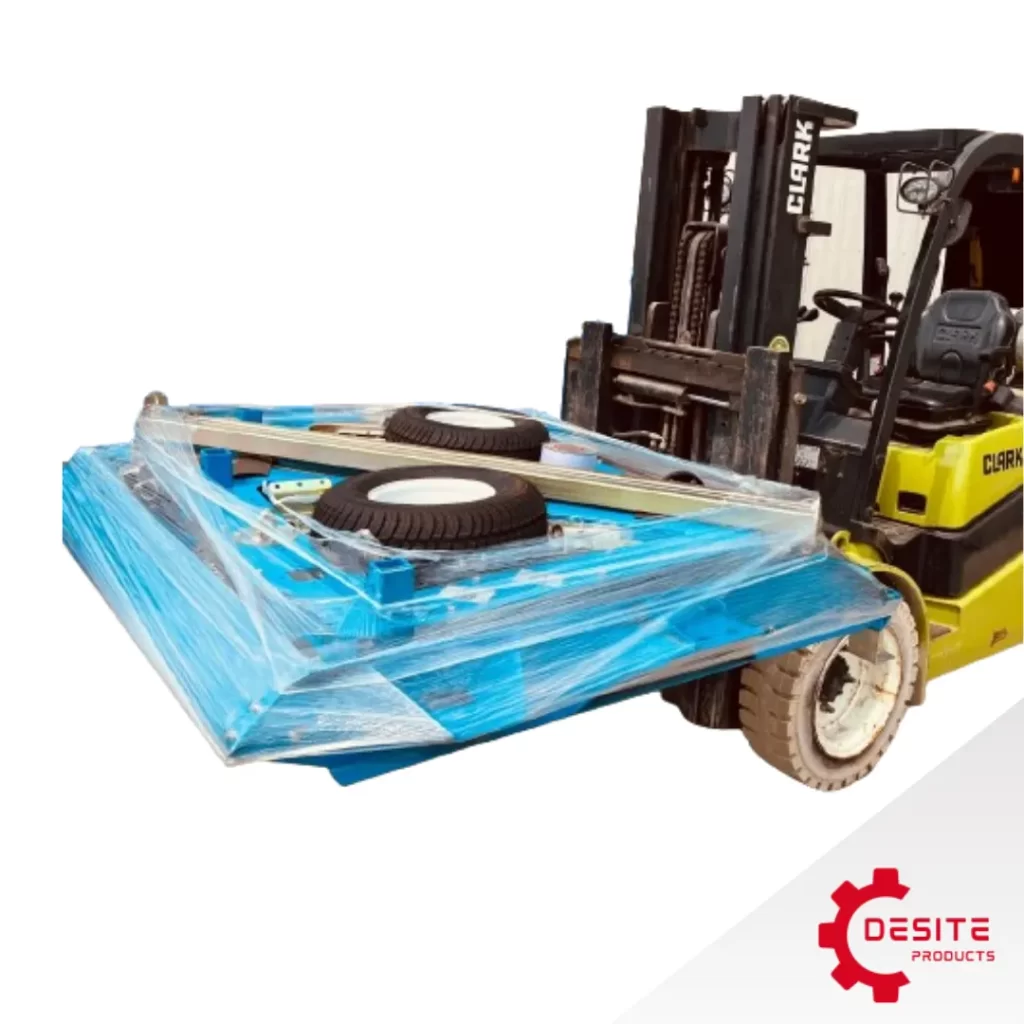

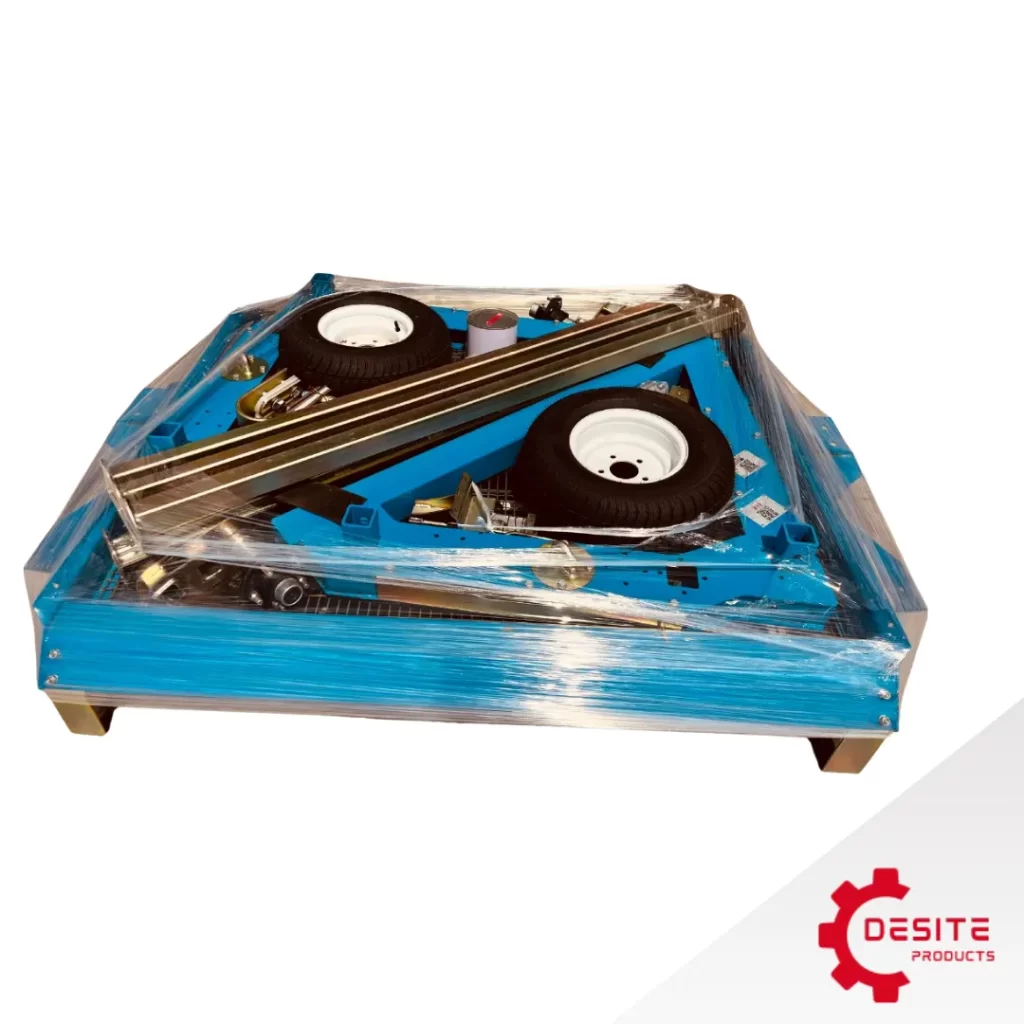

For customers who would like to avoid the "Assembly Fee" we have flat packed and designed the 56 screener for quick and easy single unit loadout. Designed for efficiency It takes less than five minutes to remove a packaged unit.
About Mesh
Square Or Elongated, What Works Best For You?

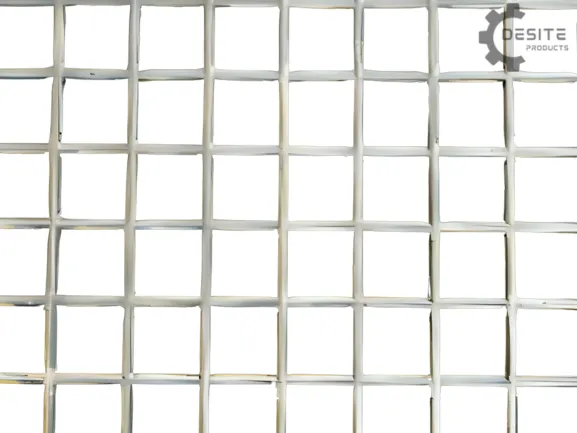

square
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
Elongated

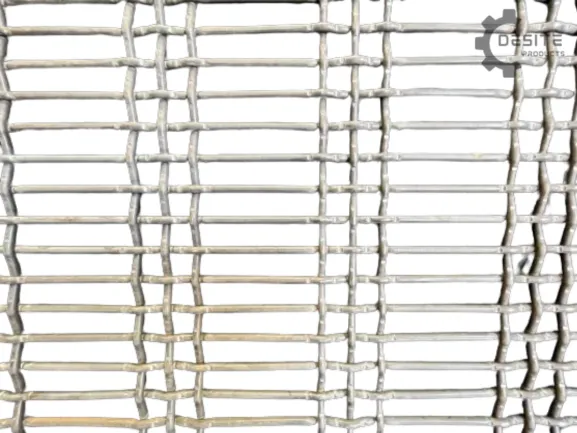

Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.

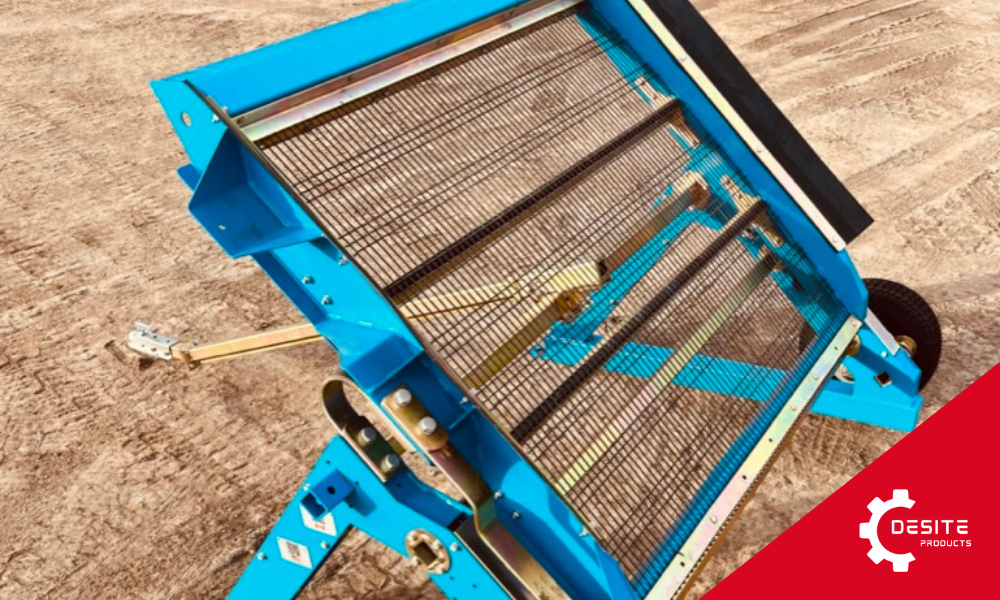

QUICK CHANGE MESH SYSTEM
The Quick Change Mesh System allows you to swiftly swap out mesh sizes, enabling you to offer a variety of aggregate sizes and topsoil qualities tailored to your customers' needs. Our side-tensioned, crowned screen decks provide easy access to the mesh clamp bolts, making it simple to switch to an alternate mesh size for producing different products. We offer a wide range of mesh sizes, from small openings that produce a 1/16 inch product to large 4-inch square meshes for handling heavy rock.
- Versatile Product Offering: Easily change mesh sizes to produce varying aggregate sizes and topsoil qualities, meeting diverse customer needs.
- Efficient Mesh Swapping: Side-tensioned, crowned screen decks provide easy access to mesh clamp bolts, allowing for quick and hassle-free mesh changes.
- Wide Range of Mesh Sizes: Options range from small openings that produce a 1/16 inch product to large 4-inch square meshes for heavy rock, accommodating a variety of screening applications.
- Increased Productivity: Quickly adjusting mesh sizes enables you to efficiently produce different products, maximizing productivity and profitability.
Mesh Guide
square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3 mm x 3 mm | Square | 1.5 mm |
| 6 mm x 6 mm | Square | 3 mm |
| 9 mm x 9 mm | Square | 6 mm |
| 13 mm x 13 mm | Square | 9 mm |
| 25 mm x 25 mm | Square | 19 mm |
| 35 mm x 35 mm | Square | 25 mm |
| 50 mm x 50 mm | Square | 40 mm |
| 75 mm x 75 mm | Square | 60 mm |
| 100 mm x 100 mm | Square | 80 mm |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3 mm x 100 mm | Elongated | 1.5 mm |
| 6 mm x 100 mm | Elongated | 3 mm |
| 9 mm x 100 mm | Elongated | 6 mm |
| 13 mm x 100 mm | Elongated | 9 mm |
| 25 mm x 100 mm | Elongated | 19 mm |
