DeSite 108 ProScreen
GENERAL DESCRIPTION
The DeSite 108 ProScreen is a versatile screener purpose built and designed for both Sub Compact and Full Sized equipment.
The screen deck is 6ft long, 10ft wide and can be fed with buckets up to a 9ft.
Only DeSite offers a screener with a tilting screen deck that allow the operate to change the screen deck angle while feeding the screener.
This versatile 108 design offers a quick disconnect Riser Box that when removed brings the feed height down to 8ft for compact equipment.
We offer a wide range of mesh sizes from 3mm to 100m in both square and elongated pattern.This 108 Vibratory screener comes with twin Dual Vib motors that are (220 volt) vibrating at 3600rpm.

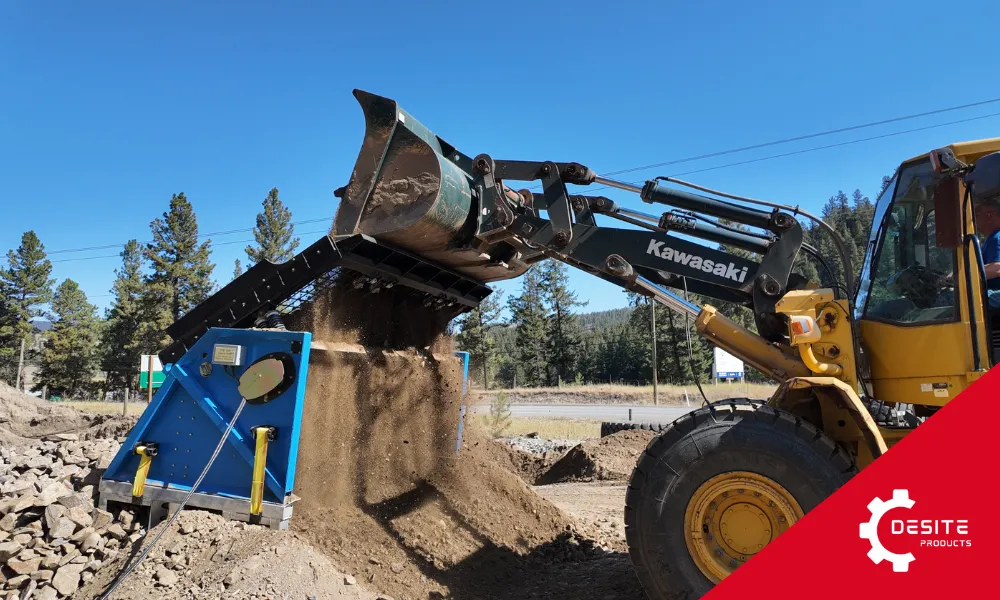

Feed the DeSite 108 ProScreen with :

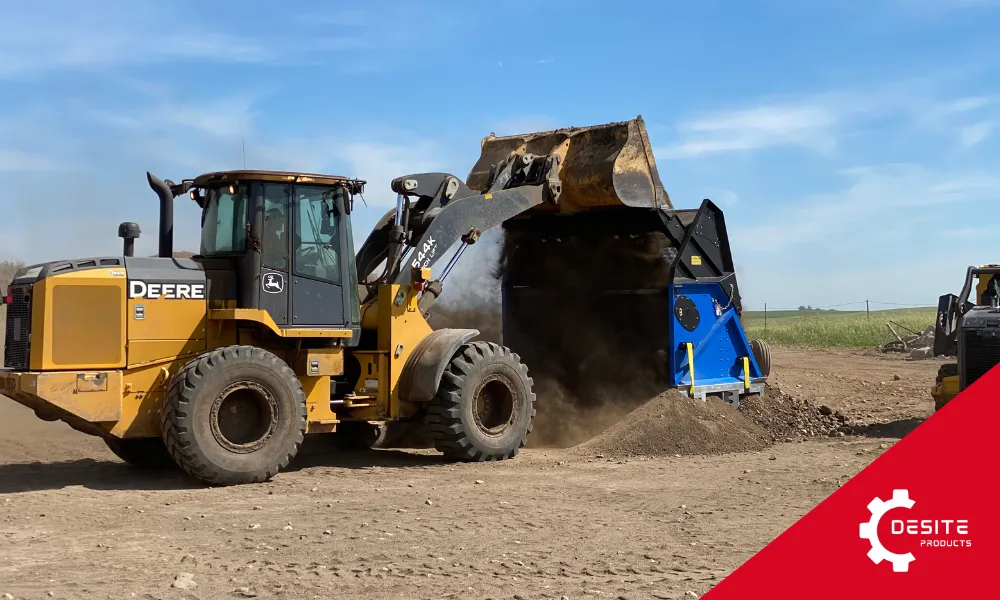

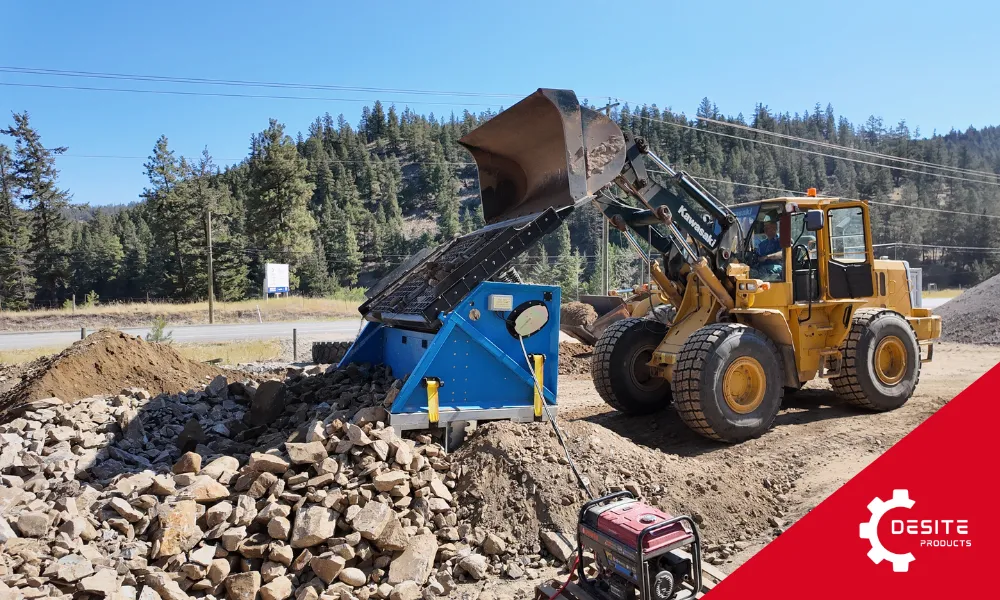

Wheel Loaders
Backhoes
Compact Wheel Loaders
Skidsteers

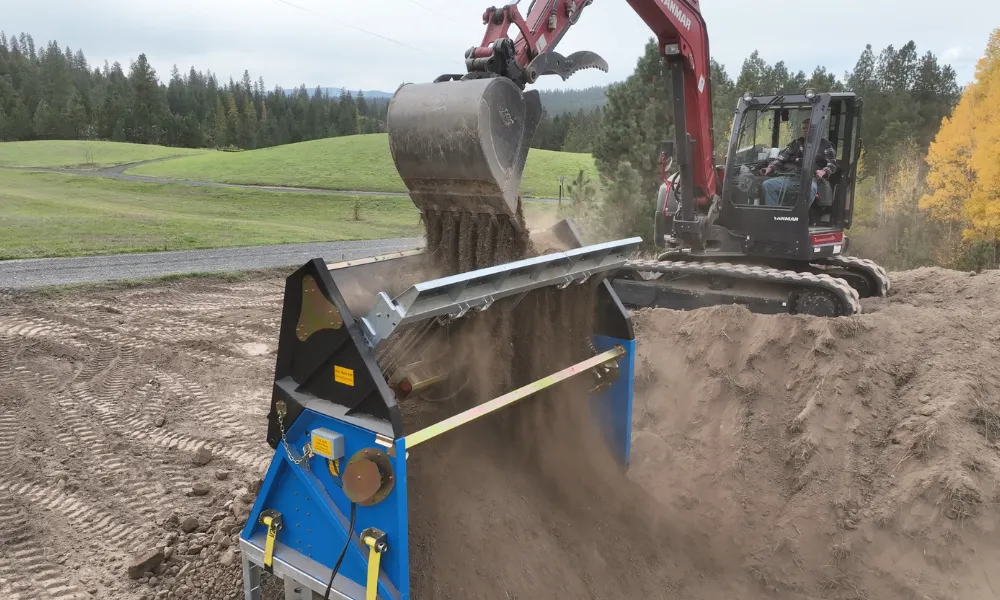

Excavators
Compact Excavators
You Can Screen
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
Screener Gallery
Screener Features

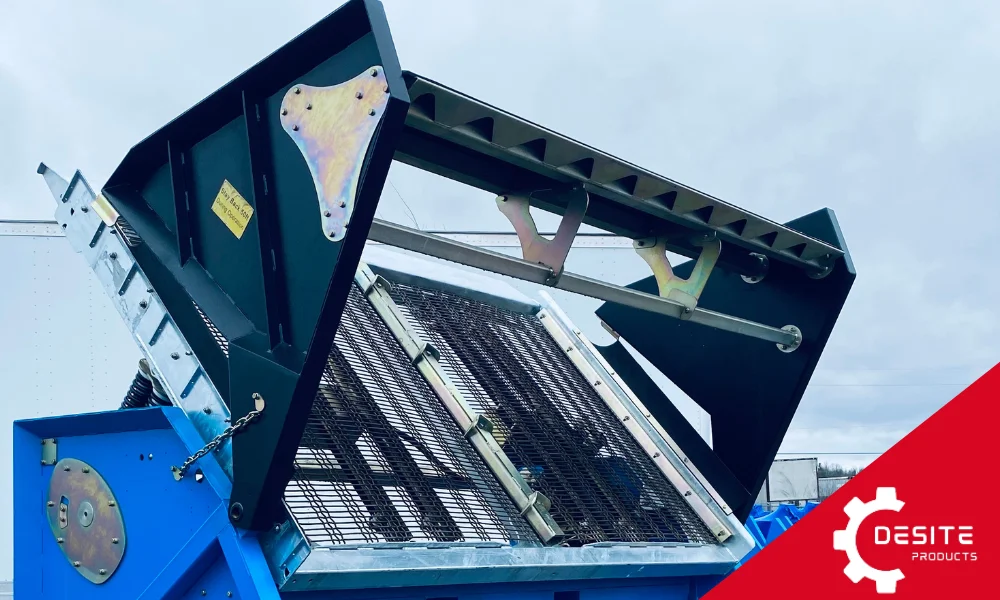

Feeder Deflection System
Only DeSite has the seat time experience to know the benefits of a Feeder Deflection System that not only helps to control flow but allows forces material to the top of the screen deck to begin the screening process.

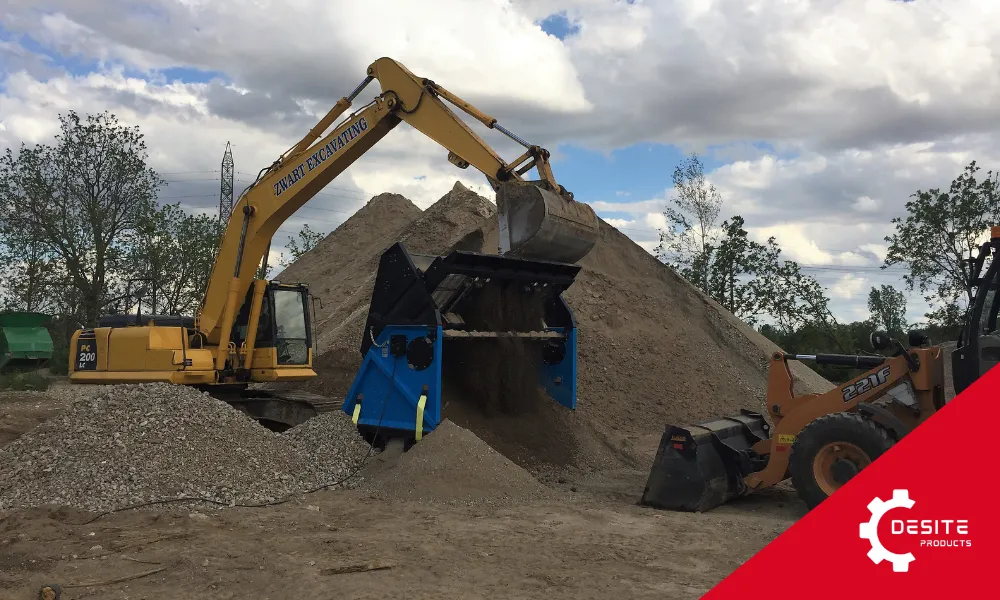

The 3ft x 10ft feeder also allows for excavators to feed the screener from all sides for maximum screening efficiency.
Desite has also designed the Feeder system to pivot open, allowing oversize material to pass through eliminating the need for anyone to be up in the feeder to dislodge large rocks, or wood chunks.
- Better Screen Deck Area Utilization
- Helps Produce More Yards Per Hour
- Safer Work Environment
Tilting Screen Deck
DeSite’s experience in screening is once again display with our Tilting Screen Deck design.
Giving the operator the ability to manipulate the deck slope for maximum screening efficiency allows for versatility when screen varying materials in varying conditions.
In the spring and fall when materials are usually wetter a steeper deck allows you to screen when others are waiting for drier weather.
In the summer when materials are drier the operator can flatten the deck slope to keep material on the deck longer for higher output and better screening efficiency.

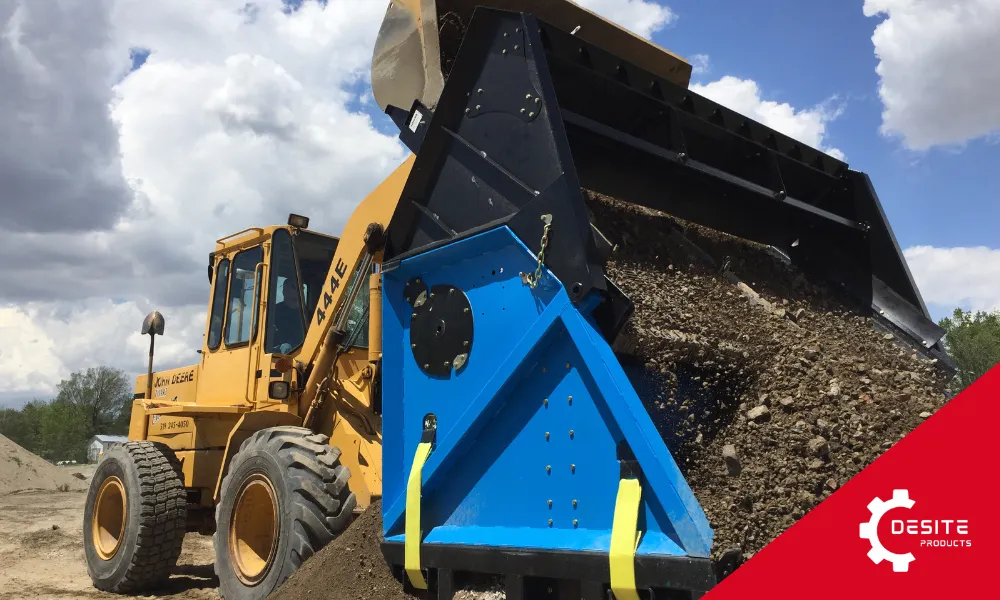

Only DeSite designs allow the operator to make contact with the screen deck so that material do not drop vertically onto the screen mesh, eliminating the costs and need for a scalping deck.

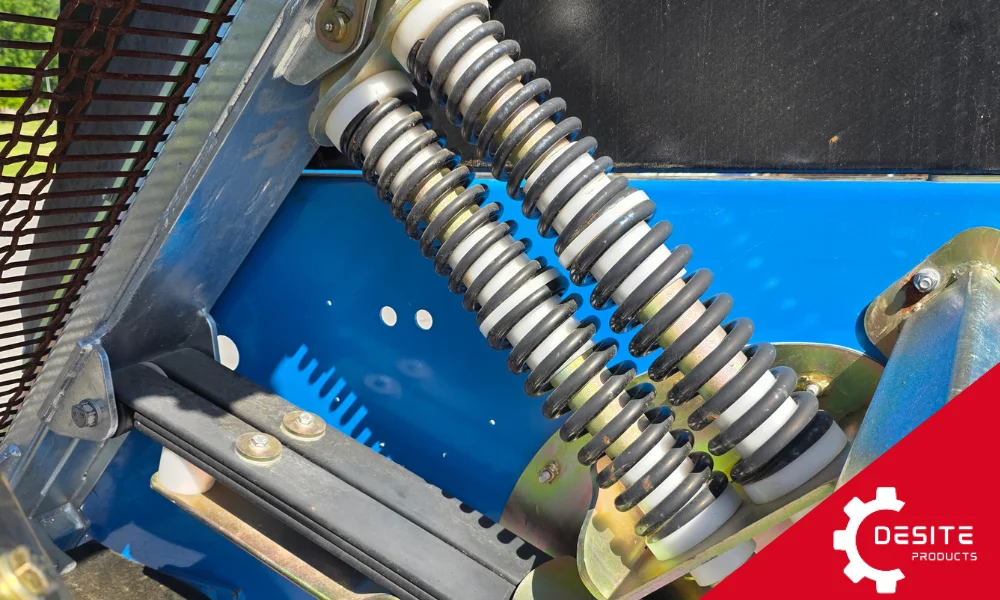

Cantilevered Screen Deck Suspension System
This rugged cantilevered screen deck suspension is all DeSite.
Built to absorb the shock of a bucket making contact with the screen deck, this suspension system works to cantilever the screen deck.
Pushing down on the top of the screen deck with the operators bucket brings the bottom up to create an action / reaction. This allows the screen deck to tilt faster up and down using less deck movement for a more aggressive screening action.
No other screener design has this ability to jump the screen deck up and down for dislodging rocks, sticks, and sod.
Vibratory Packs / with Power Box
DeSite has designed its screen deck into two 5ft x 6ft side by side mesh panels that each have there own 3600rpm 120 volt dual eccentric power packs. We have designed it this way so that the vibratory packs do not have to compete with each other to vibrate the entire screen deck.
At 3600rpm the vib packs do their job vibrating all the mesh wires so that wet materials resist sticking to the wire and plugging the mesh opening. Our tilting screen deck works hand in hand with our vibratory packs to move material across the screen deck to handle both wet and dry material efficiently.

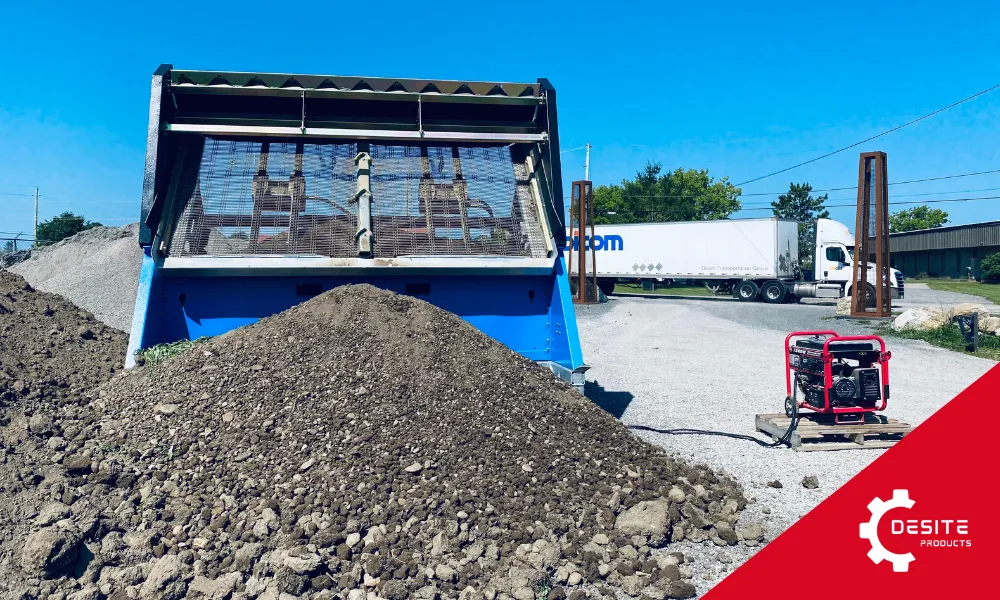

The DeSite 108 ProScreen can sue land power if within 75ft or a minimum of a 6500 watt generator to power the screener so the hourly operating costs are very low.

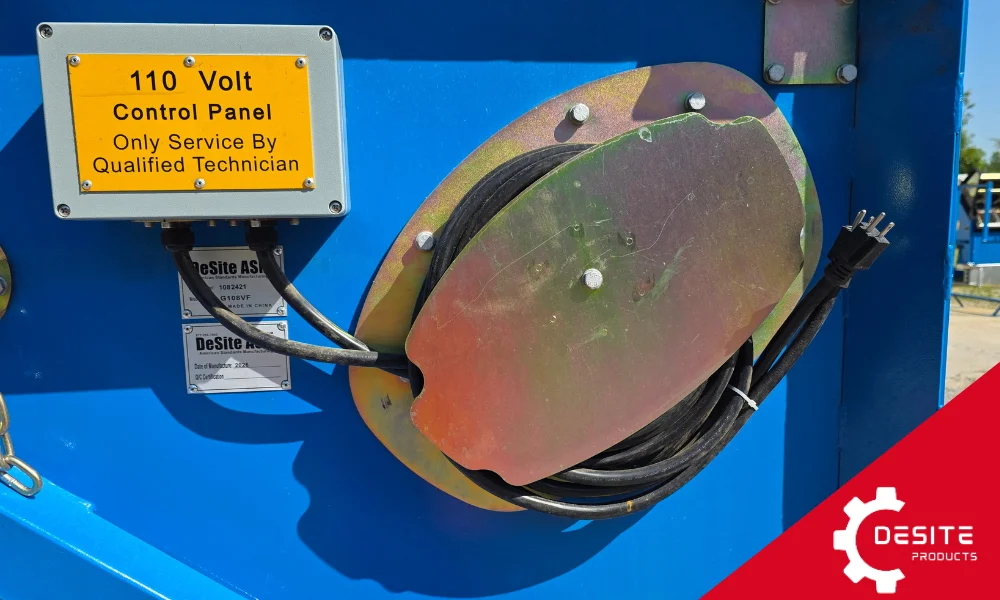

Each vibratory pack has its own 25ft power cord and starting capacitor built in the water tight power box so that start up is easy and requires minimal power draw.
Screener Accessories

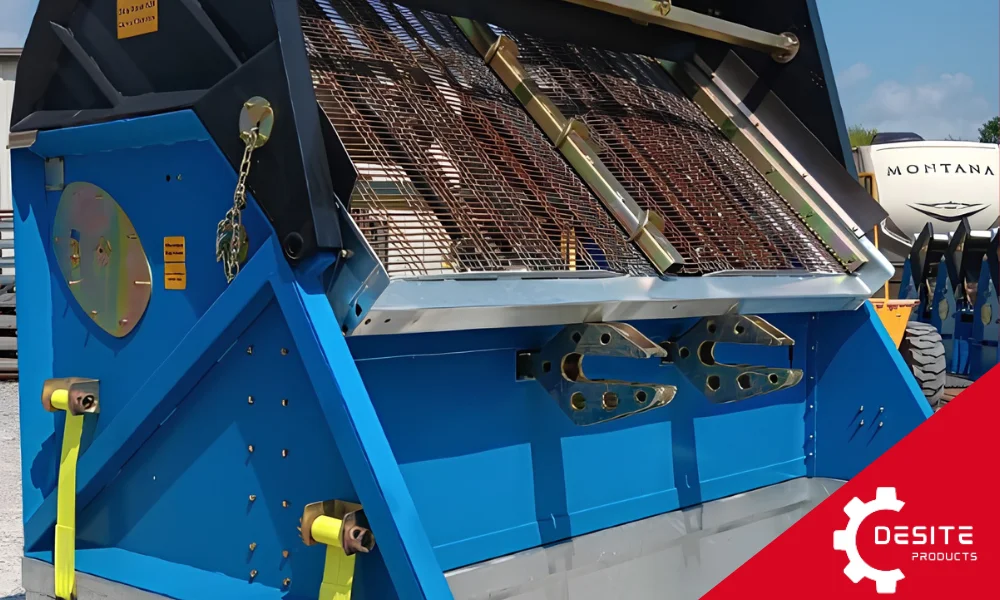

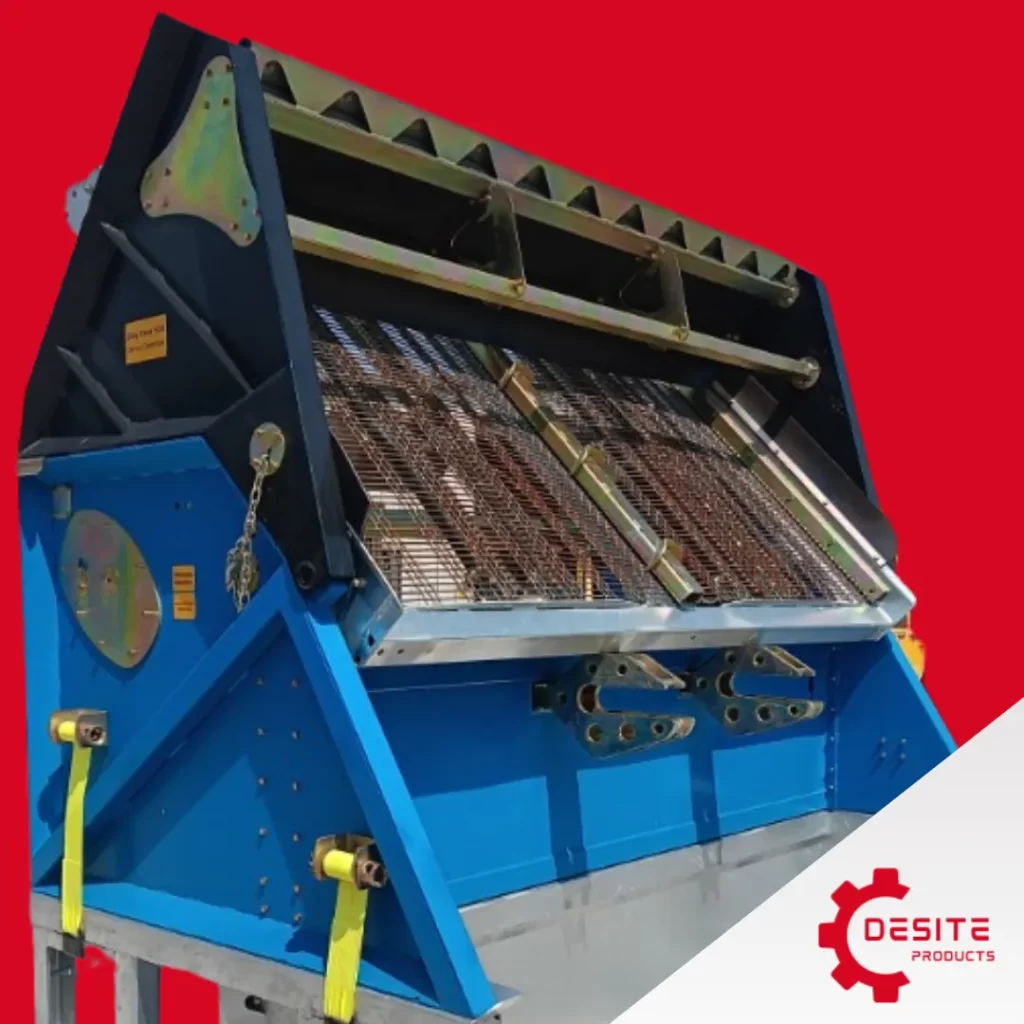

Bucket Transportation Lugs

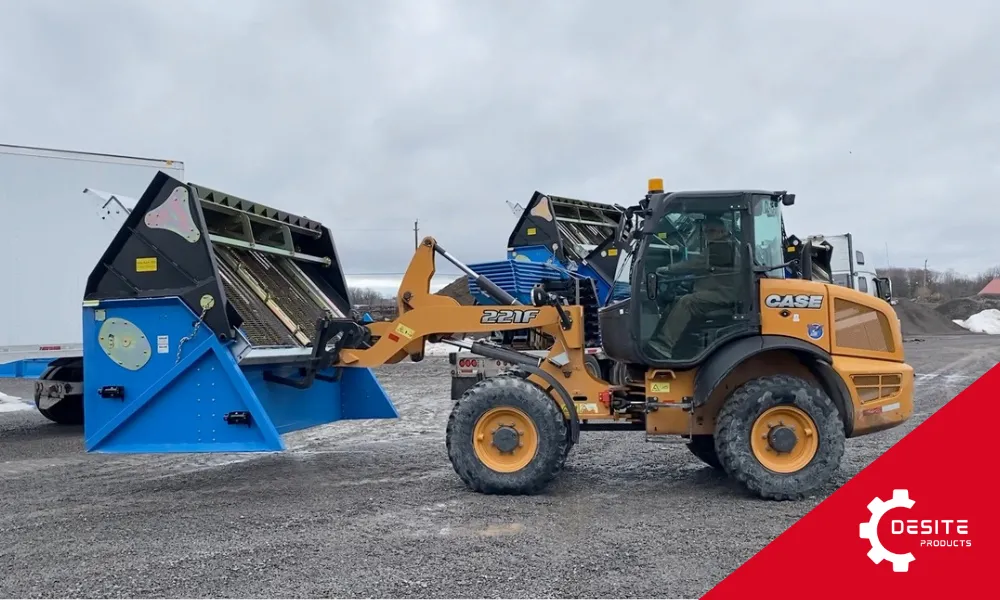

The DeSite 108 ProScreen screener can be easily moved around the job site using just the bucket of your machine, thanks to our Bucket Transport Lugs.
This system allows you to keep your machine as close as possible to the material being screened, reducing cycle times and increasing the number of buckets processed per hour, which leads to higher hourly output.
Our fork and bucket lug transport system eliminates the need for wheels, axles, hitches, and wiring, reducing maintenance and simplifying the transport process.
- Easy Onsite Mobility: Move the DeSite 108 ProScreen around the job site using just the bucket of your machine, enhancing convenience and flexibility.
- Increased Efficiency: Keeping your machine close to the material being screened reduces cycle times, allowing for more buckets per hour and higher overall output.
- Simplified Transport: The fork and bucket lug system eliminates the need for wheels, axles, hitches, and wiring, reducing the complexity of transport.
- Low Maintenance: With no wheels, axles, or wiring to maintain, the system offers a maintenance-free solution for moving the screener around the site.

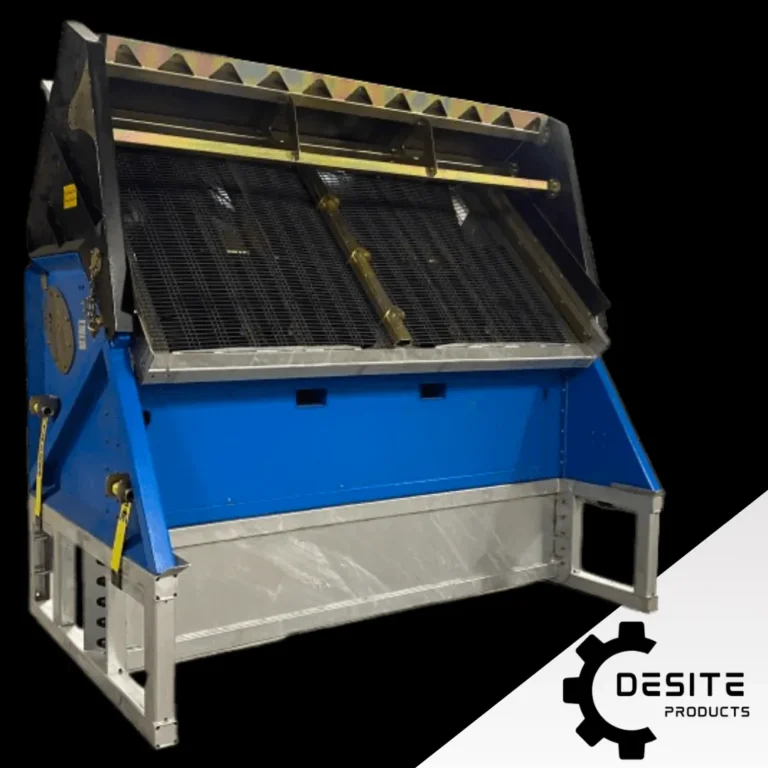

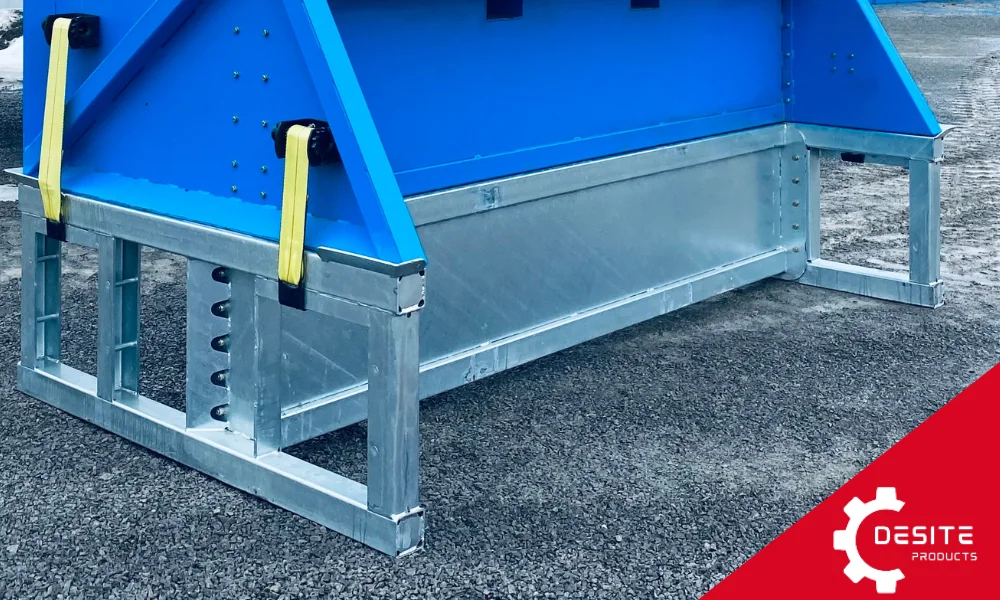

Quick Disconnect Riser Box
The DeSite 108 ProScreen is both versatile and equipment friendly for both compact and full sized equipment. The 24 inch Riser Box will take the feed height from 8ft up to 10ft double the storage capacity of both the finished product and overs to over 6 cubic yards on both sides.
When up on the riser both and feeding with full sized equipment vision from the seat of the operators cab is excellent. The operator can see the entire screen deck and how the material is flowing over the deck.
Off the Riser Box and feeding with compact equipment the feed height comes down to 8ft for maximum feeding efficiency and maximum vision.
Removing or reinstalling the DeSite 108 Pro Screen screener on or off the riser box takes less than five minutes with our four winch strap system.
- Corrosion Resistance: The galvanized finish protects the Riser Box from corrosion, ensuring durability even when covered in soil and rock.
- Increased Storage Capacity: Elevating the screener on the Riser Box allows for up to 5 yards of material storage on each side, enhancing productivity.
- Heavy-Duty Construction: Weighing in at 1200 lbs, the Riser Box provides a sturdy and reliable base for your screener.
- Enhanced Efficiency: By raising the screener, the Riser Box improves overall workflow, allowing for more efficient material handling and processing.
Machine Specifications
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 3200 mm |
| Machine Height | 3100 mm |
| Machine Depth | 1850 mm |
| SCREEN DECK | |
| Screen Deck Width | 3050 mm |
| Screen Deck Length | 1850 mm |
| Screen Deck Surface area | 5.4 square meters |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Vibratory |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 amps on start up then 5 amps at full rpm ( each vibratory motor ) |
| Eccentric Force rotation | 345kg force per/revolution |
| ELECTRICAL POWER SUPPLY | |
| Europe | 220 Volt |
| WEIGHT | |
| Total Weight with riser box | 2500 kg |
| Total Weight without riser box | 2000 kg |
About Mesh
Square Or Elongated, What Works Best For You?
square
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
Elongated
Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.

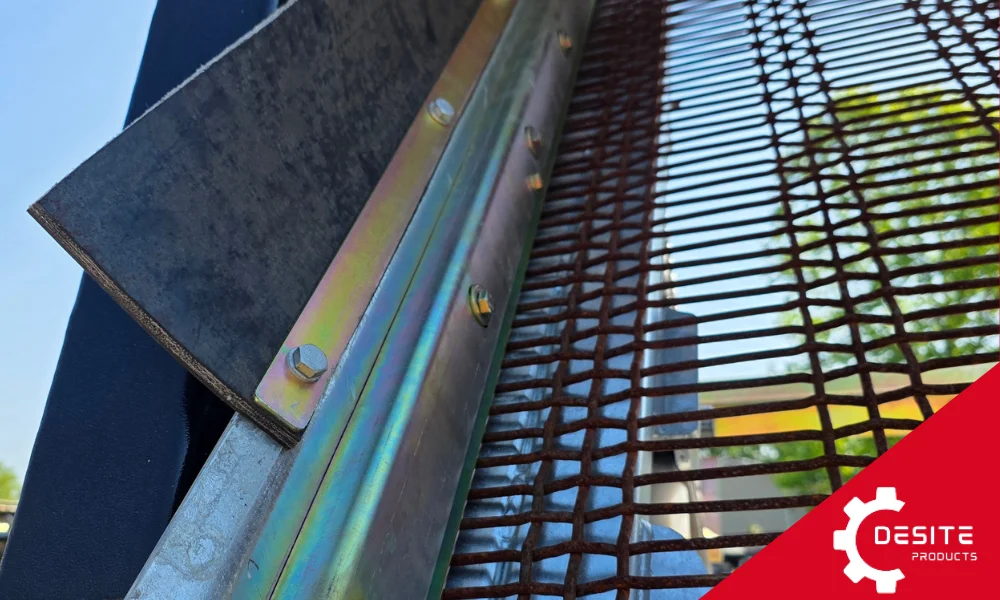

QUICK CHANGE MESH SYSTEM
The Quick Change Mesh System allows you to swiftly swap out mesh sizes, enabling you to offer a variety of aggregate sizes and topsoil qualities tailored to your customers' needs. Our side-tensioned, crowned screen decks provide easy access to the mesh clamp bolts, making it simple to switch to an alternate mesh size for producing different products. We offer a wide range of mesh sizes, from small openings that produce a 1/16 inch product to large 4-inch square meshes for handling heavy rock.
- Versatile Product Offering: Easily change mesh sizes to produce varying aggregate sizes and topsoil qualities, meeting diverse customer needs.
- Efficient Mesh Swapping: Side-tensioned, crowned screen decks provide easy access to mesh clamp bolts, allowing for quick and hassle-free mesh changes.
- Wide Range of Mesh Sizes: Options range from small openings that produce a 1/16 inch product to large 4-inch square meshes for heavy rock, accommodating a variety of screening applications.
- Increased Productivity: Quickly adjusting mesh sizes enables you to efficiently produce different products, maximizing productivity and profitability.
Mesh Guide
square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3 mm x 3 mm | Square | 1.5 mm |
| 6 mm x 6 mm | Square | 3 mm |
| 9 mm x 9 mm | Square | 6 mm |
| 13 mm x 13 mm | Square | 9 mm |
| 25 mm x 25 mm | Square | 19 mm |
| 35 mm x 35 mm | Square | 25 mm |
| 50 mm x 50 mm | Square | 40 mm |
| 75 mm x 75 mm | Square | 60 mm |
| 100 mm x 100 mm | Square | 80 mm |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3 mm x 100 mm | Elongated | 1.5 mm |
| 6 mm x 100 mm | Elongated | 3 mm |
| 9 mm x 100 mm | Elongated | 6 mm |
| 13 mm x 100 mm | Elongated | 9 mm |
| 25 mm x 100 mm | Elongated | 19 mm |
